Acoustic walls, floating floors and independently hung ceilings delivered as one package — for music teaching rooms, studios and offices where sound transfer costs you the handover. Built exactly to the acoustic drawings: isolators, hangers and straps positioned per design.
Wall, floor and ceiling built as one system — each decoupled from the structure around it. Build-ups from our music college packages.
The baseline — Gyproc, Soundblock, Fireline, Duraline, Gyptone. Built to the White Book.
Tested equivalent where it meets the spec and saves on the valuation.
Tested equivalent for standard and fire-rated partitions.
Equivalent system with full datasheets. [Name to confirm — §10]
High-impact and acoustic floor boards where the spec calls for them.
Insulation to the acoustic or thermal target in the drawings.
| Build-up | Application |
|---|---|

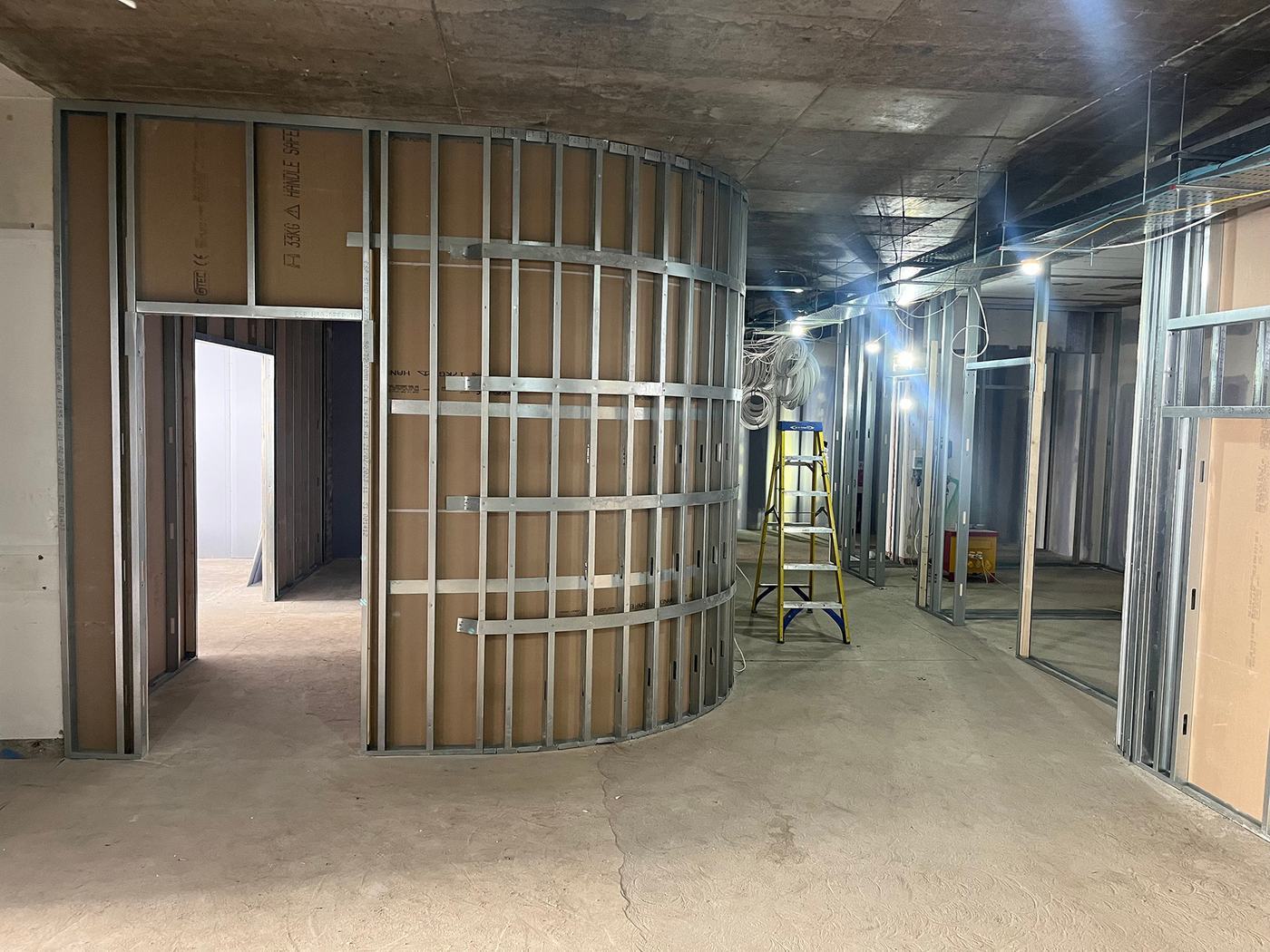

| Twin 70 mm BG stud & track · 3 × 100 mm solid insulation · ply + 3 × Soundblock each side | music room wall |

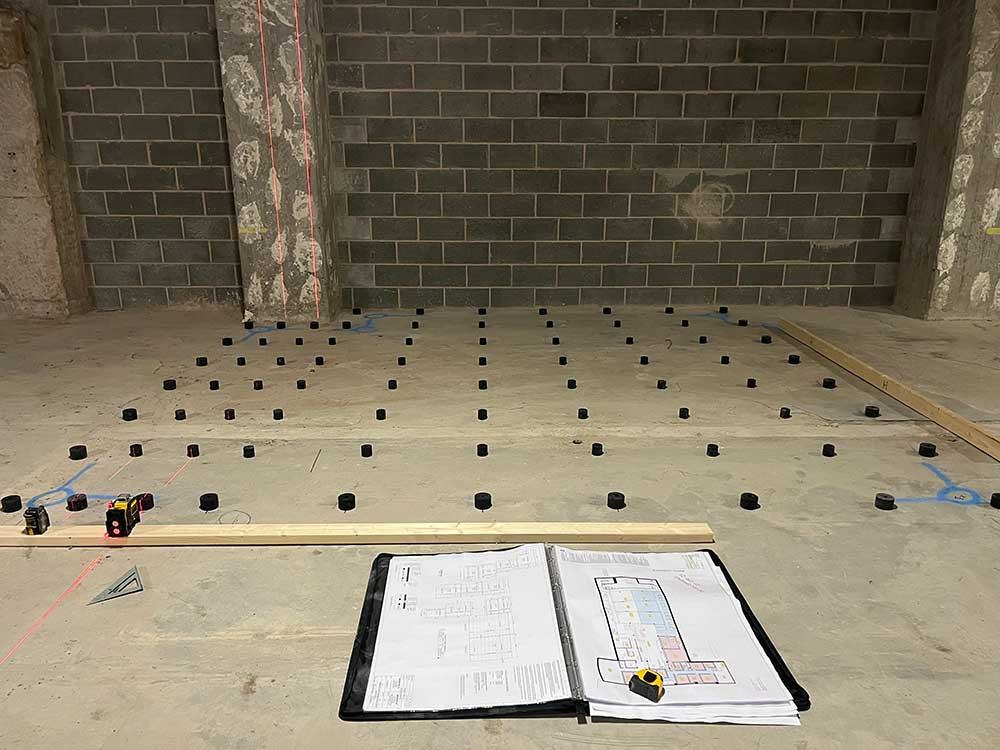

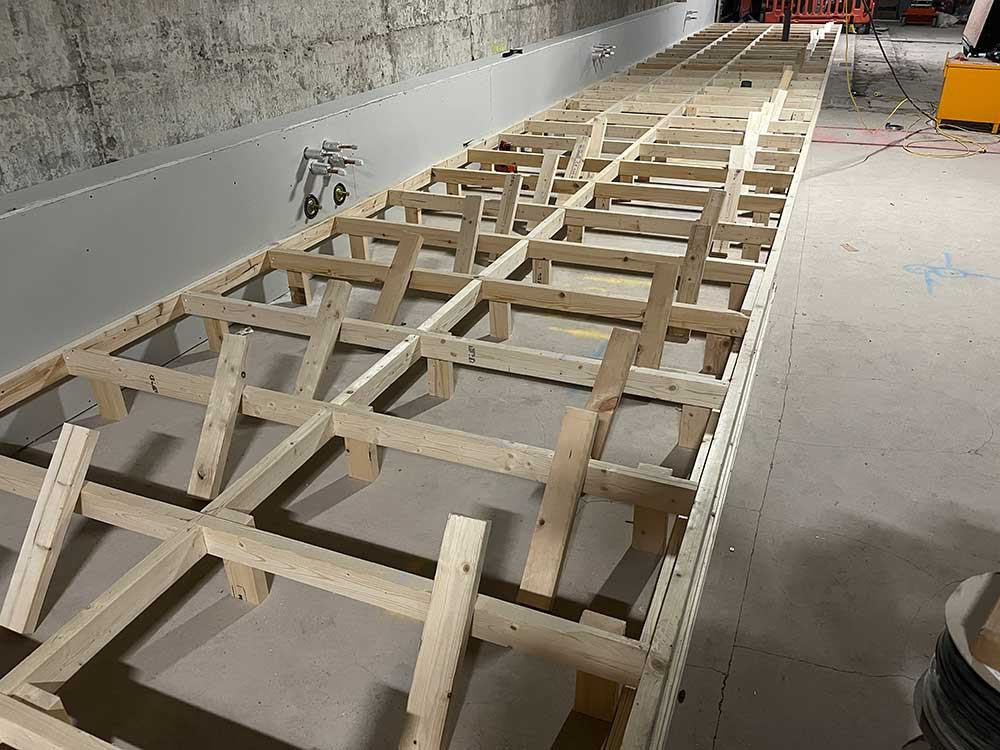

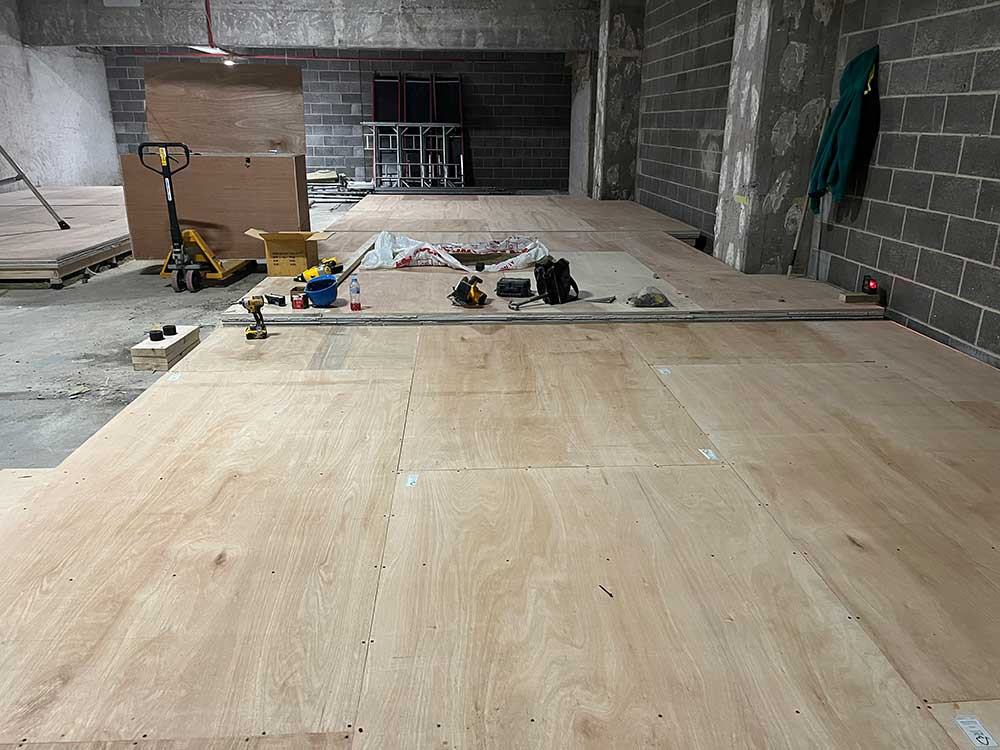

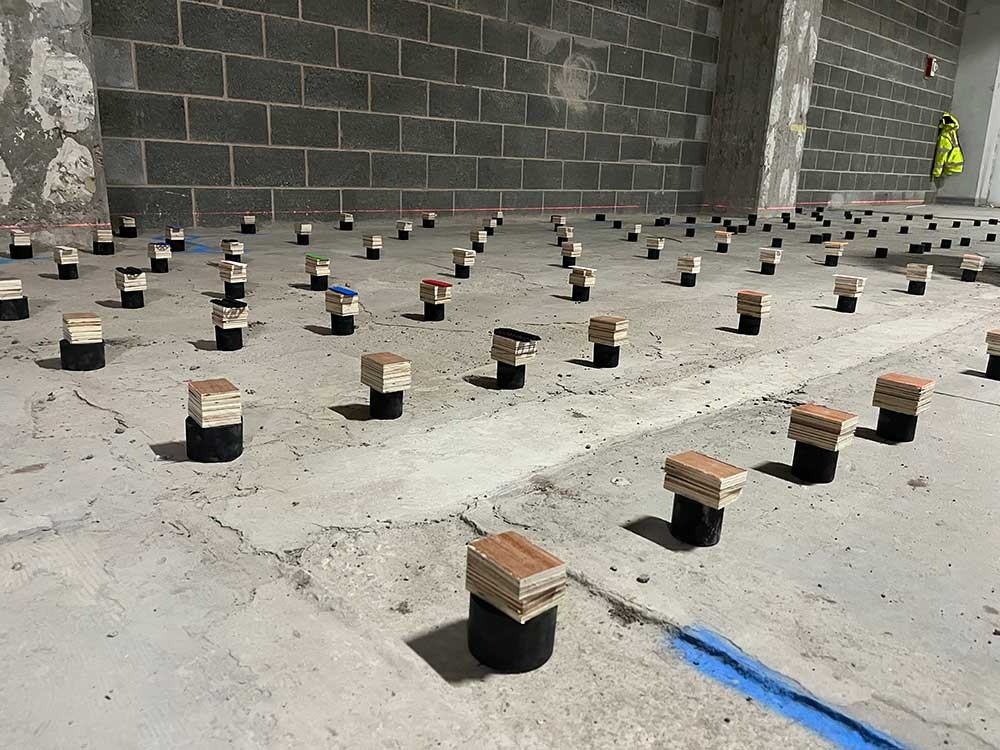

| 2" × 4" timber frame on rubber blocks · Fermacell · 15 mm Soundblock · 100 mm insulation · 5 mm rubber sheet · ply | floating acoustic floor |
| Acoustic hangers · MF ceiling · 15 mm Soundblock · ply · 5 mm rubber · 100 mm insulation on top | independent acoustic ceiling |

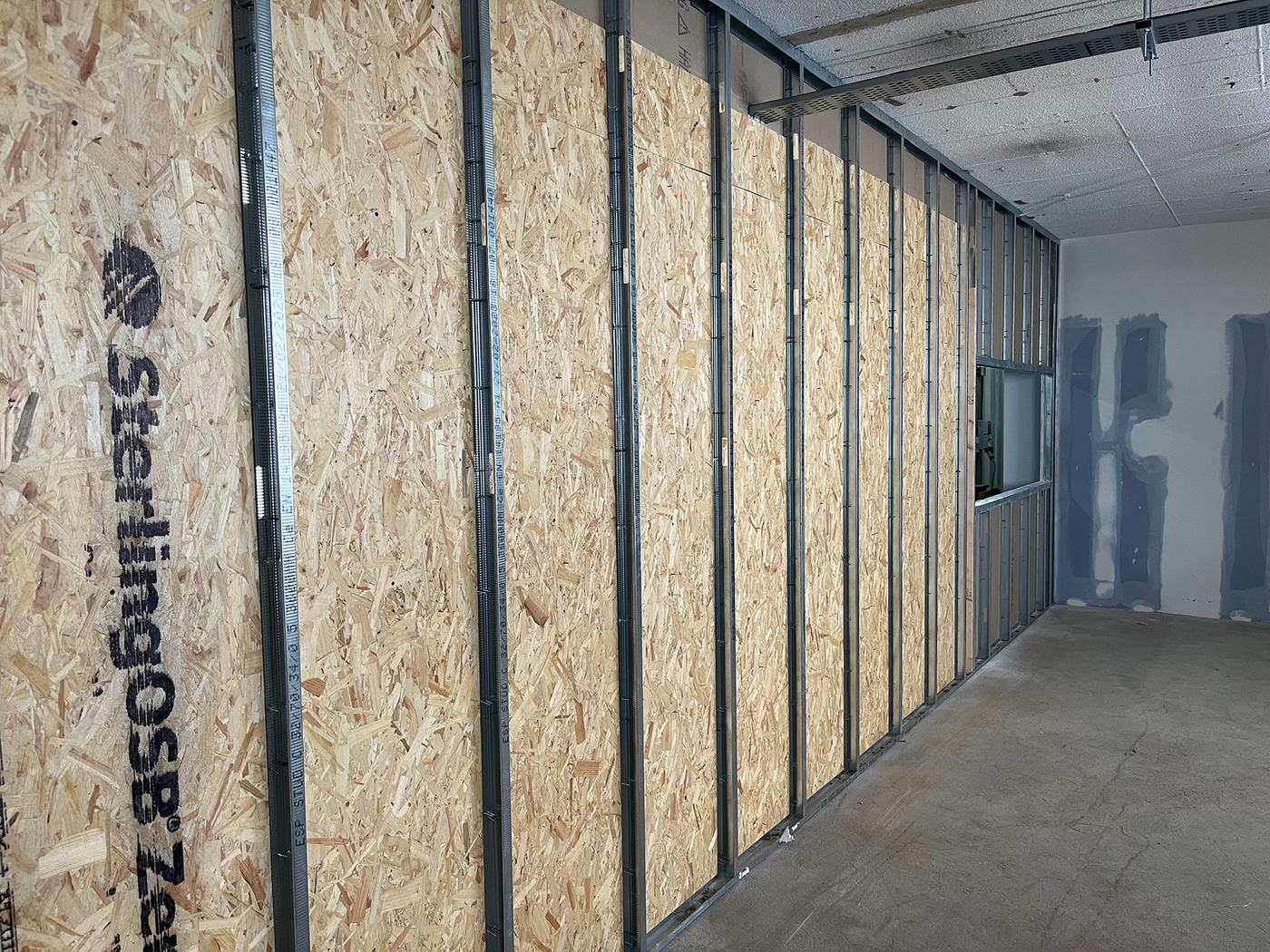

| 4 × 2 timber · 50 mm PIR · 12.5 mm Soundblock · resilient bars | classroom wall |
